PCMFlash v1.2.0 or 1.2.1

 available modules:   1 ... 74

USB dongle EU + software

 price:  ask !

Interface J2534 not included !

For module 71 Scanmatik 2 PRO and connection cable are required !

for other module and version please ask on email.

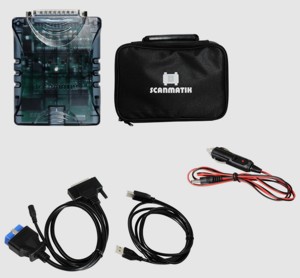

Interface Scanmatik 2 PRO + M/EDC17 bench connection cable for module 53, 71

Genuine interface !

The interface sell with dongle PCMFlash only !

 price: 740 EUR

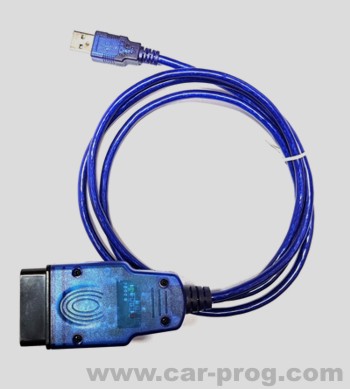

Interface SMS-Diag DiaLink J2534 - EU

Newest version: 22.09.30

 price: 130 EUR

price: 180 EUR

 more info: email

Kess2 / New Genius DAF/MAN/SCANIA Truck cable - 144300K208

price: 75 EUR

 more info: email

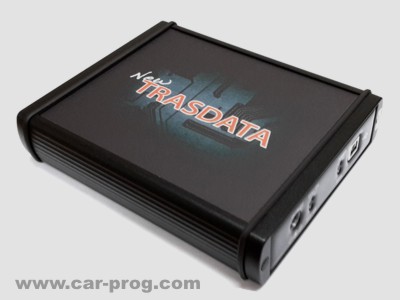

NEW TRASDATA FW: 9.004   FULL EU

For EGPT (Bosch service) mode standard GPT Ktag cable can be used.

FW7.020‐FW9.004 protocols compare: 490 new, 687 updated. Added 200 Bosch EGPT protocols.
FW8.000‐FW9.004 protocols compare: 379 new, 374 updated. Added 200 Bosch EGPT protocols.
Also trasdata software allows you to write without updating the checksum and work with unknown ECUs with CPUs supported by protocols.

200 new EGPT Bosch MED/EDC17 protocols (Bench mode without ECU open)
VAG Simos 12.1, 12.2
VAG Simos 18.1, 18.2
VAG Simos 18.10
VAG Simos PCR2.1 Flash read
FCA GPEC2, GPEC2A, GPEC4, GPEC4LM
Hiundai/KIA SIM2K-240, SIM2K-241,SIM2K-250, SIM2K-251, SIM2K-260, SIM2K-305, MT86
Ford/LR SID208 Flash read
FCA Marelli 8GMK/8GML, MJ9DF, 10GF
FAL Marelli MJ8DF/8F2, 8GMB/8GMC/8GMF/8GMW/8GSF/8GSW
Scania EMS S8 BAM. Just 3 point PCB connection into VIA holes. Can be connected without removing gel.
BMW MSD80, MSV80, MSD81, MSD85.0/MSD85.4, MSD85.1/MSD85.3, MSD87.1/MSD87.2, MSV90
PSA SID208
MB SID307, SID310
Renault SID307, SID309, SID310
Porsche SDI21.x
Mitsubishi E6T83XXX, E6T32xxx
Isuzu Transtron SH72544R
Isuzu Transtron L4.3
Hino EDC7UC31
Hyundai, Greatwall DCM6.2AP
and other...

Real picture:

Warranty for interface 24 month.

  include OBD2 and EGPT/GPT/SSM cable

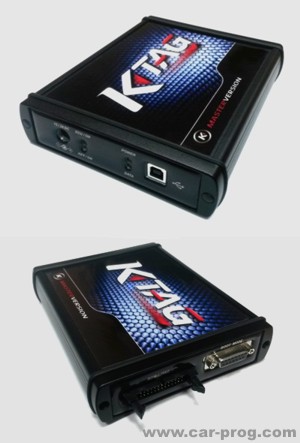

Compare KTAG FW7.020 / FW8.000 / NEW TRASDATA

include shipping to EU only

 Interface + cable + adapters:

NEW TRASDATA firmware: 9.004 - 1149 EUR
(working with internet connection only)


Only interface:

KTAG FW: 7.020 / 8.000  FULL EU

made in EU with HIGH QUALITY !

internet safe

ORIGINAL SD card TRANSCEND not slow china like other seller fw: 7.020 and 7.026 !

Software and HELP files supported 6 languages : English/ Deutsche/ Spanish/ Italian/ Portuguese/ French

Only EU quality parts from Digikey, Farnell, Mouser

Warranty for interface 24 month.

include OBD2 and GPT cable

KTAG FW 8.000 SW 2.47 - actuality version of the summer of 2017.
The firmware works only online, with the Internet connected.

Updated 313 protocols.
Added 111 new protocols.

Among them:

ME17.5.20 VAG GPT
ME17.5.26 VAG GPT
EDC17CP20 VAG GPT
EDC17C45 NISSAN GPT
EDC17C46 VAG GPT
EDC17C49 SUZUKI GPT
EDC17C53 KIA HYUNDAI GPT
EDC17C54 VAG GPT
EDC17C76 BMW GPT
EDC17CP65 FORD GPT
DELPHI DCM 3.7 VAG
DELPHI DCM 6.2 PSA
DELPHI DCM 6.2 AP SSANGYONG
DELPHI DCM 3.7 KIA HYUNDAI
DELPHI CRD 2.xx MB
DELPHI CRD 3.E1 MB

Added support units, Toyota Denso installed EEPROM of the firm ROHM

Support for new firmware versions with format number 10SWxxxxxxxx

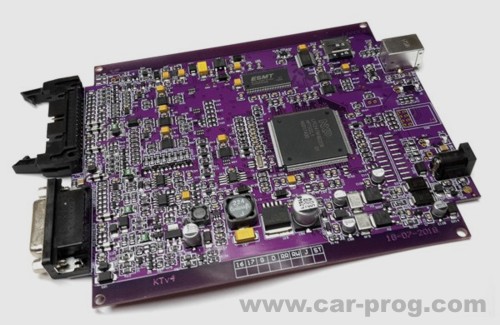

Real picture

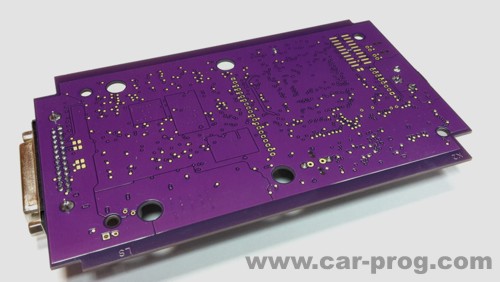

PCB made in Germany !

 Interface + cables (also obd2 and GPT) + adapters + software v2.25

 Interface + cable + adapters:

KTAG firmware: 8.000 software: 2.47 - 949 EUR  out of stock !
(working with internet connection only)

KTAG firmware: 7.020 software: 2.25 - 549 EUR



Only interface:

KTAG firmware: 8.000 software: 2.47 - 849 EUR  out of stock !
(working with internet connection only)

KTAG firmware: 7.020 software: 2.25 - 499 EUR

Compare FW version:

KTAG_FW7020_FW8000_compare.pdf

KTAG / TRASDATA cable:

Renesas M32 ECU: Kawasaki, Yamaha, Suzuki bikes with Denso ECUs - 144300T107

price: 40 EUR

 more info: email

Mercedes Continental ACM 2.1 - 144300T113

price: 75 EUR

 more info: email

Mercedes Continental MCM 2.1 HDEP - 144300T112

price: 75 EUR

 more info: email

Renault/Volvo TRW Bench mode - 144300T115

- TRW EMS2.2 Gen2
- TRW EMS2 E5
- TRW EMS2.3
- TRW EMS2.4

working with KTAG only !

price: 135 EUR

 more info: email

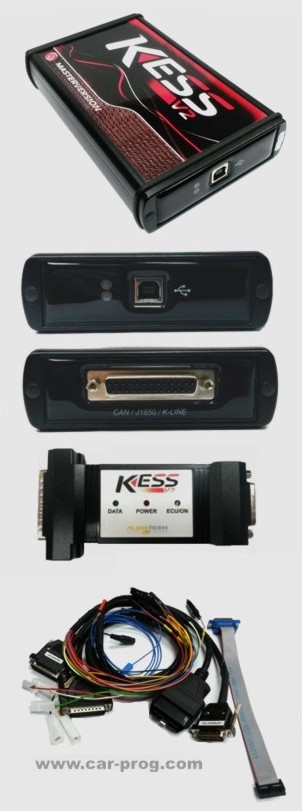

KESS / NEW TRASDATA UPGRADE KIT !

ORIGINAL SD card TRANSCEND, LPC chip new, no soldered, programmed and tested in special adapter.
Kit include: LPC2478+FT245RL+SD card+SW. All programmed and ready to use !

Working with internet connection only !

KESS sw: 2.55 fw: 5.030 FULL, UNLIMITED Tokens. - 700 EUR
New TRASDATA sw: 3.0194 fw: 9.4 FULL, UNLIMITED Tokens. - 700 EUR

KESS+NEW TRASDATA: 2xMCU+2xSD card+2xFT245RL - 1350 EUR

info: email

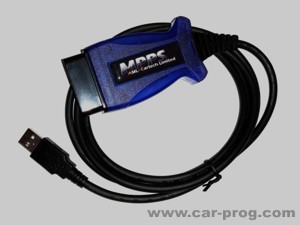

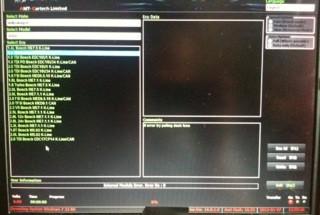

NEW !   MPPS v18 Flasher FULL activations EU (MAIN SW + TRICORE SW + MULTIBOOT SW)

Software working without loader and tokens !

Tricore Boot

This module adds boot mode support for controllers with the tricore processor.
Features:

Auto detects ECU and processor type. No need to select from list, everything is automatic!
Read/Write of all memories Eeprom, Irom, Xrom (where possible)
Patch function for OBD Flashing of TPROT ECU’s (supports only VAG at the moment)
TPROT / DS check feature, for testing if TPROT is active without opening ECU.
Supports Bosch upto TP12
Supports Siemens (current only for ECU’s without password protection),
Support for unlocking of VAG Simos PCR and Simos 8
Checksum Correction supported for Bosch MEDC17



Multi Boot

This module adds support for advanced functions on Marelli ECU’s.
Features:

Read / Write of Micro, Flash and EEprom without using a BDM programmer!
Fiat 6F3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
Fiat 6JF – Full Read / Write Micro and EEprom over K-line.
Fiat 8DF – Full Read / Write Micro and EEprom over K-line.
Fiat 8F2 – Full Read / Write Micro and EEprom over K-line and CAN.
Fiat 8F3 – Full Read / Write Micro and EEprom over K-line and CAN.
Fiat 8GM – Full Read / Write Micro and EEprom over CAN.
Fiat 8GS – Full Read / Write Micro and EEprom over CAN.
Fiat 5SF3 – Full Read / Write Flash and EEprom over CAN.
Fiat 5SF3 – Full Read / Write EEprom over K-Line.
Fiat 5SF8 – Full Read / Write Flash and EEprom over K-line and CAN.
Fiat 5SF9 – Full Read / Write Flash and EEprom over CAN.
Fiat ME7.9.10 – Full Read / Write Micro over CAN.
Fiat ME7.6.3 – Full Read / Write Micro over CAN.
Opel 6O2 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
Opel 6O3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
Opel 6JO – Full Read / Write Micro and EEprom

199 EUR

249 EUR

Galletto3 v54 MASTER Flasher

Car, Truck, Tractor, Motorbyke, ...

made in EU - HIGH QUALITY !

No need change date on Win XP or buy special PC and install china Windows !

No need license for every PC and write eeprom for repair interface !

Working on Windows XP and Windows 7 32 bit.

 Warranty for hardware 6 month.

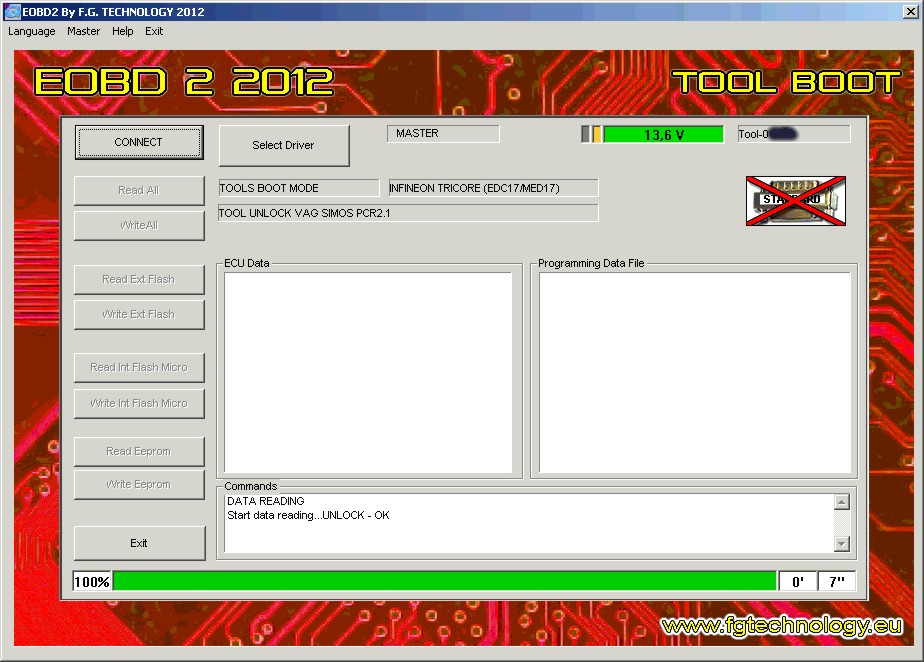

VAG PCR2.1 unlock in boot mode and read/write via OBD !

Fiat MJ8DF, Mazda Denso, Mercedes CRD2.x, PSA DCM3.5, VAG PCR2.1, Simos 10.x, and many more ... via OBD

SUPPORTED DRIVER LIST

- VAG SIMOS PCR2.1
- JTAG RENESAS - BDM - MOTOROLA - INFINEON
- FREESCALE MPC5553/5554/5565/5566 NEXSUS PORT
- IAW MJD8F2 - Mair 8GMF - Delphy DCM3.5x DCM3.7x TRW
- Motorola Freescale  MPC 555/556/561/562/563/564/565
- Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8
  GM - OPEL - SAAB
- Motorola MC 68376 Campi 01 Lamborghini - Lotus
- Motorola MC 68336 MEMS D5 ROVER
- Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
- New Line OBD protocols VPM GM
  Hummer-Corvette-Munstang-Blazer-Cadilac
- New Line OBD protocols Tx - Rx
  Subaru - Mitsubischi - Hitachi - Denso ECUs

Real picture !

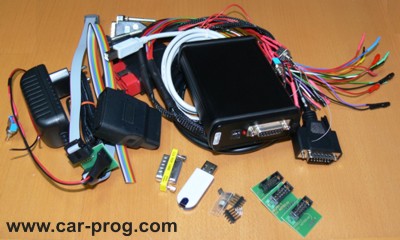

Interface + OBD2 cable + TriCore boot cable + Renesas/Hitachi cable + BDM to CMD adp. + 4 adp. BDM + Truck adp. + CD sw, pdf + dongle USB

price: 499 EUR

info: email

Galletto3 v54 MINI Flasher

Simple Galletto3 without BDM and JTAG port

VAG PCR2.1 unlock in boot mode and read/write via OBD !

SUPPORTED DRIVER LIST

Real picture !

Interface + OBD2 cable + TriCore boot cable + CD sw + pdf + dongle USB

price: 299 EUR

info: email

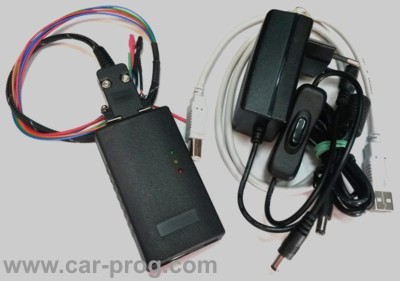

Fiat/Alfa IAW-BOSCH Decoder

made in EU

4AF/4EF kwp - read/write flash, virgin, clear DTC
59F HW <100 kwp - read/write flash, virgin, clear DTC
59F HW >100 (ST10F168) kwp/boot - read/write flash, virgin, clear DTC
59F HW >100 (ST10F269) kwp/boot - read/write flash, virgin, clear DTC
5AM (Ducati) hw< 100 kwp - read/write flash, virgin, clear DTC
5AM (Ducati) hw> 100 kwp/boot - read/write flash, virgin, clear DTC
5AM (Ducati) hw> 100 (ST10F269) kwp/boot - read/write flash, virgin, clear DTC
5NF XX kwp - read/write flash, virgin, clear DTC
5SF3/5SF8/5SF9 boot mode - read/write flash, virgin, clear DTC
MJD 6JF kwp - read/write flash, virgin, clear DTC
Bosch M155 boot mode - write flash, clear DTC
Bosch ME73H4 boot mode - read/write eep/flash, clear DTC
Bosch ME731 boot mode - read/write eep/flash, clear DTC
Bosch ME31A boot mode - read/write eep/flash, clear DTC

ready interface + cables + dongle USB + pdf

price: 249 EUR

info: email

ETL ETsmart USB - Project (pcb protel + hex + sw)

ETL HC9S12 - Project (pcb protel + hex + sw)

ETL HC908 - Project (pcb protel + hex + sw)

ETL HC(7)11 - Project (pcb protel + hex + sw)

ETL HC(7)05 - Project (pcb protel + hex + sw)

ETL ST7282 - Project (pcb protel + hex + sw)

ETL TMS370 - Project (pcb protel + hex + sw)

ETL HC705v12 - Project (pcb protel + hex + sw)

ETL NDM457 - Project (pcb protel + hex + sw)

ETL M35080 - Project (pcb protel + hex + sw)

ETL HC705E6 - Project (pcb protel + hex + sw)

ETL HC11PA8/KA1/KA4/P2 - Project (pcb protel + hex + sw)

VAGdashCAN v5.29 K+CAN - Project (pcb protel + hex + sw)

VAGdashCOM v1.65 K-line  - Project (pcb protel + hex + sw)

Rosfar R260 - Project (pcb protel + hex + sw)

EWS Editor v3.20 - Project (pcb protel + hex + sw)

IAW59F decoder v5.5 - Project (pcb protel + hex + sw)

AutoScanner BMW v1.0.1.6 - Project (pcb protel + hex + sw)

Piasini Master v4.1 - Project (pcb protel + 3hex + sw)

AutoScanner Opel K+CAN - Project (pcb protel + hex + sw)

Xprog-M v5.0 + adapters FULL authorization - Project (pcb protel + 3hex + sw)

TRASDATA - Project (pcb protel + hex + sw)

Carprog 4.01 - Project (pcb protel + hex + sw)

Bosch ME3xx/7xx-Marelli IAW decoder - Project (pcb protel + hex + sw)

ELM327 v2.1 (hex)

Galletto2 MINI - Project (pcb protel + 2hex + sw)

Galletto3 MINI - Project (pcb protel + 2hex + sw)

MPPS v16 - Project (pcb protel + 2hex + sw)

Galletto3 fw.53, fw.54 - Project (pcb protel + 2hex + sw)

CANtieCAR v3.x (pcb protel + hex + sw)

NEW TRASDATA - Project (pcb protel + 3 hex + sw)

K-TAG v1.99/v2.11/2.24/2.25/2.33 (pcb protel + 3hex + sw)

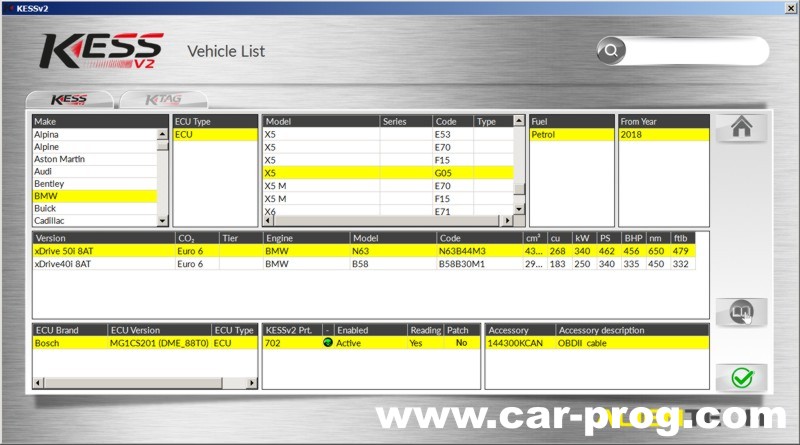

KESS2 v1.89/v2.08/2.24/2.34/2.47 (2 pcb protel + 3hex + sw)

NEW  MB SKC Star Key Calculator v1.0.12 - Project (pcb protel + hex + sw)  Now SAFETY TIME only 1 min.

Renesas H8SX Airbag Tool for Honda, Subaru, Toyota (pcb protel + hex + sw)

MPPS v18/v21 - Project (pcb protel + 2hex + sw)

Audi A6/Q7 2004-2008y. Key programmer device bu obd2 (without PC) - (pcb protel + hex)

PCF79xx programmer (pcb protel + hex + sw)

KeyGen for ECUF Flasher, Alex flasher (exe file)

SMS DiaLink J2534 interface  (pcb protel + hex + sw)

price: email

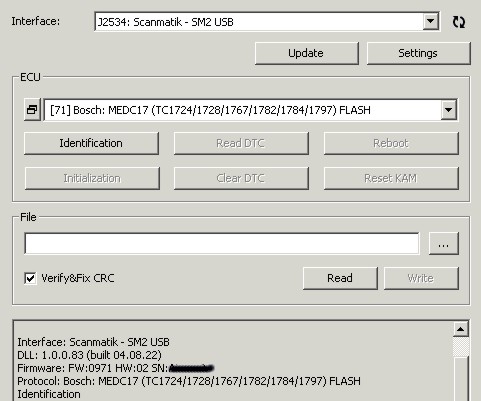

NEW !   Scanmatik 2 PRO newest version from 4-August-2022

software 2.21.22 Firmware: 0976 HW: 02

(pcb protel + hex + sw)

(hex/bin working with all new chip ID)

price: email

and other new project...
